Table of Contents
MAIN WIRING DIAGRAM

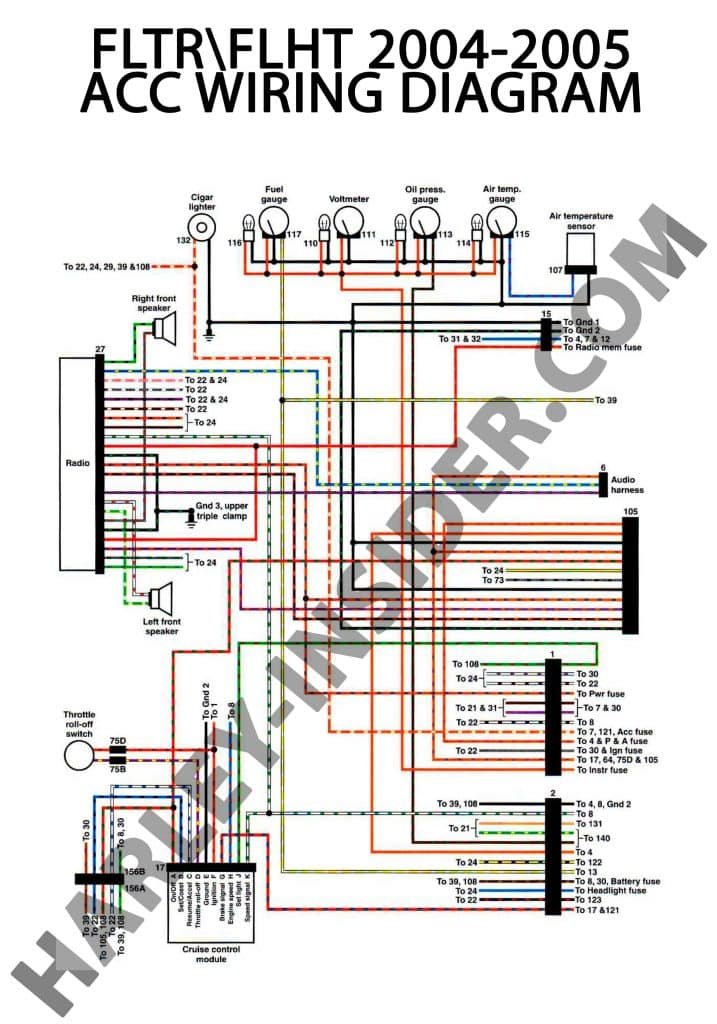

Accessories Wiring Diagram

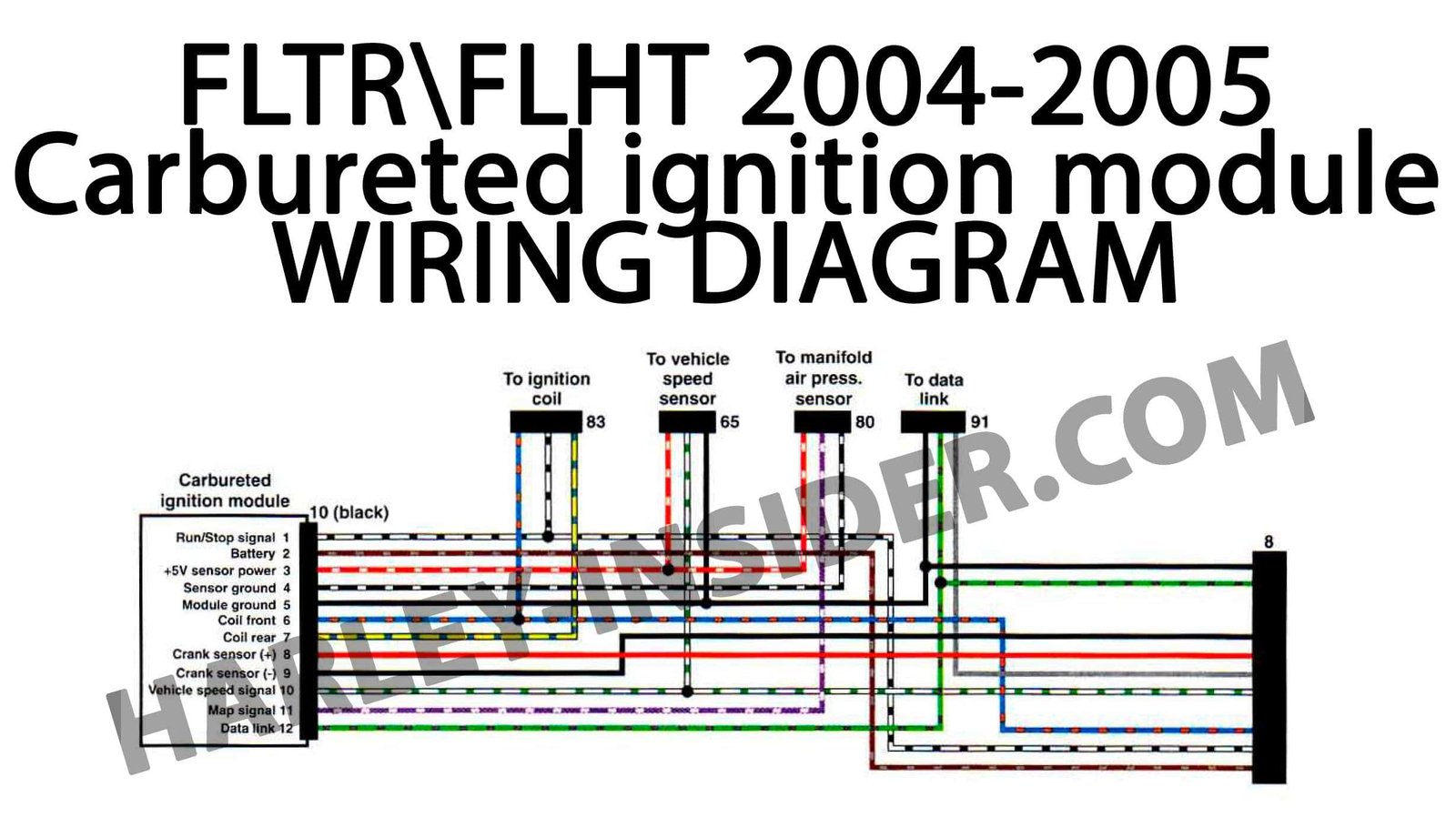

Сarbureted Ignition Module Wiring Diagram

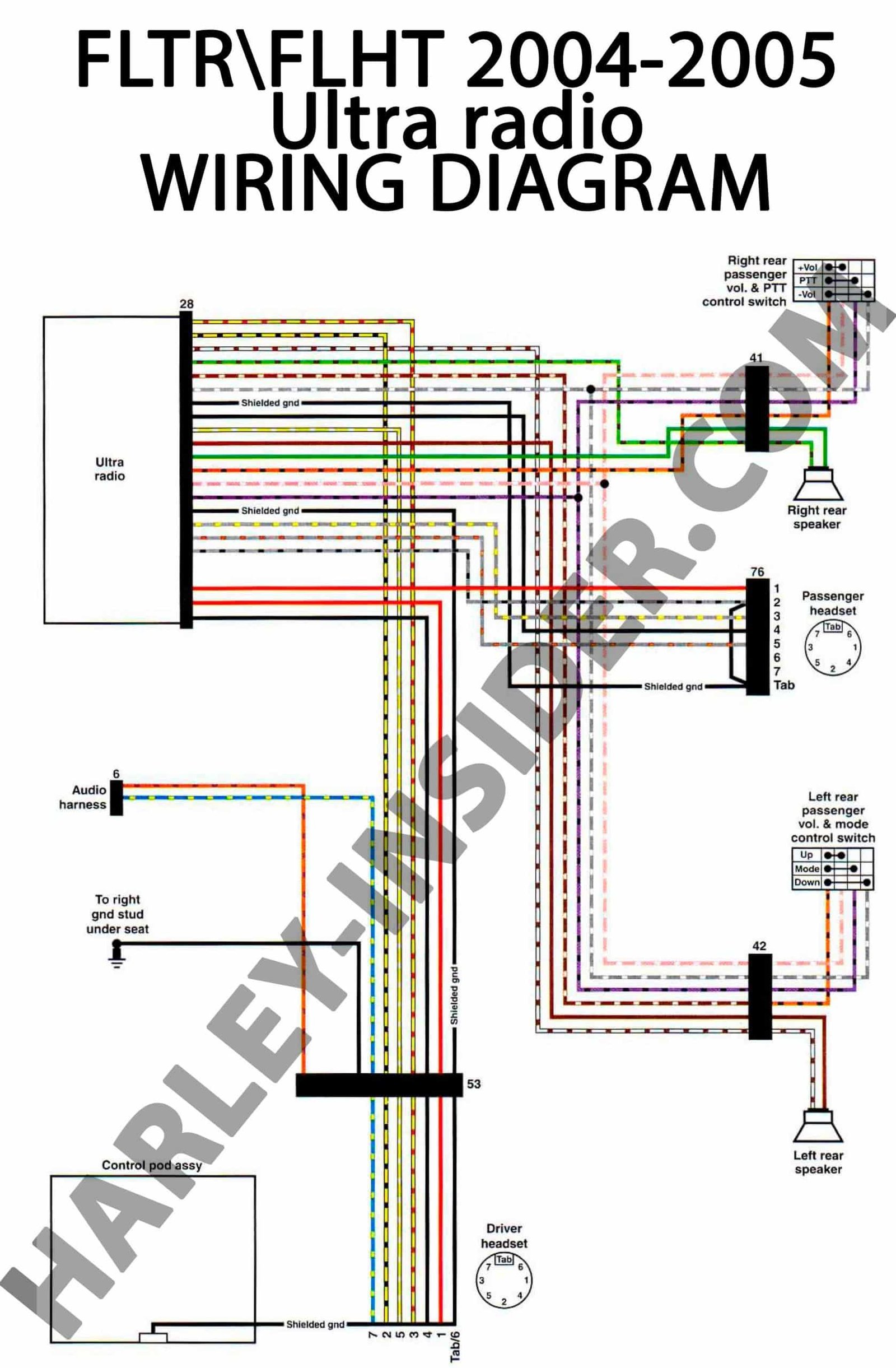

Radio Wiring Diagram
Ignition Switch Wiring Diagram
Andrew has been immersed in the Harley-Davidson world for over a decade. A dedicated enthusiast and researcher, he has spent years studying Harley mechanics, attending owner events, and building relationships with experienced riders and independent mechanics. He created Harley-Insider to bring together the knowledge that too often stays buried in forums organized, verified, and easy to find.
Is there away that I can get a complete wire diagram for my 2006 harley davidson street glide FLHXI
